Main Features

Smart Design | Convenient Operation | Efficient Temperature Control System | Double-Door Pass Type Separator

Model : ELP-900HC

elp-900hc

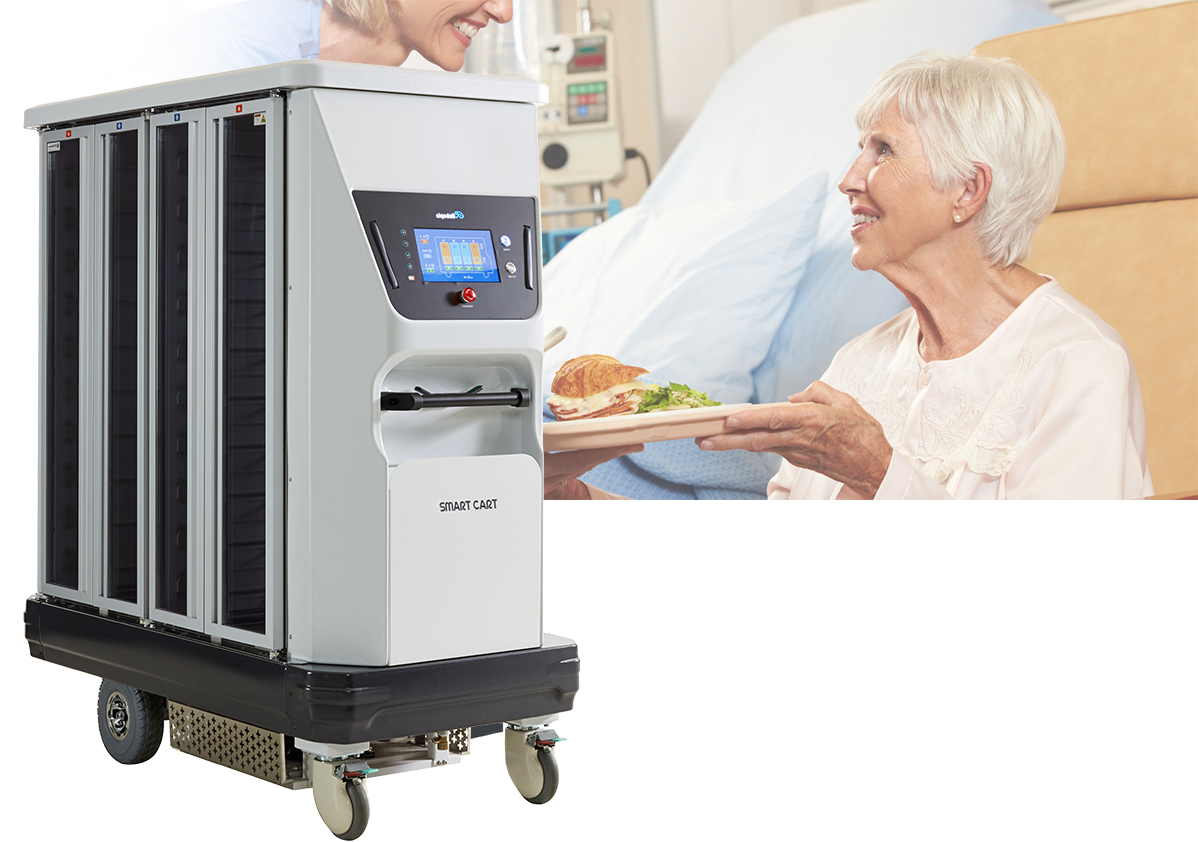

SMART Food Service Cart for Hot-Cold Patient Meal Distribution and Hygiene Management

- Provides warm, fresh and healthy balanced meals with the temperature control
system of hospital patient meals

- Excellent heat and cold functions that reach a warm temperature of 65 °C with
30 minutes of preheating time and cold temperature of 5°C during meal preparation

- Convenient double-door pass type separator for increased food-service efficiency
even in small spaces

조작 편의성

Convenient of Operation

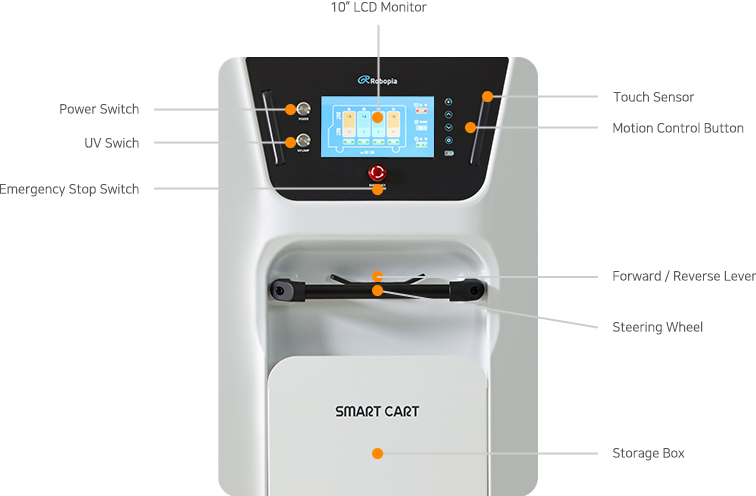

- Increased safe driving and work efficiency through front-focused controls and optimal user interface

- Easy operation through ergonomic handle design, secured steering stability and convenient constant speed maintenance

- Electric food service cart that can transport hospital patient meals easily and conveniently in small spaces inside the hospital

Insulated Pair Doors / Convenient Pass-Type Separator / Safe Racks

- Maintains uniform temperature with close-fit antibacterial packing door that considers the insulation
- Convenient double-door pass type separator for increased food-service efficiency even in small spaces
- Safe racks without sharpness during preparation with sturdy and high-density material injection racks

  • Forward / Reverse / Slope Drive

    - Easy to move even when filled with sterilized items due to lever control
    - Safe driving with the acceleration/deceleration functions SLOW START / STOP
    - Easy drive without difficulty on 20-degree ramps

  • Front Monitor / Emergency Stop Switch

    - Rear camera attached to visually check blind spots when driving in reverse
    - Safe driving possible through easy identification of forward/backward
    direction display on 7-in LCD screen
    - Safety preparation by the installation of an emergency stop switch that
    can be pressed easily in emergencies

  • Reverse Alarm / Rear Detection Sensor / Bumper

    - Safe use with surrounding boundary operation with the alarm function
    when driving in reverse
    - Rear detection sensor attached that recognizes obstacles when driving
    in reverse and alerts you in advance with an alarm sound
    - Protects against impact with the four-sided bumper that has high
    impact resistance

  • Front / Rear Wheels

    - It is easy to change directions with the front caster and its low noise is
    optimal for the quiet hospital environment
    - The rear electric wheels are foam-filled wheels that does not need follow-up
    maintenance

  • Power Plug / Earth Leakage Breaker

    - Integrated power plug for safety maintenance
    and convenient repeated use
    - Basic installation of earth leakage breaker to
    prepare for electrical safety of the product

  • Battery Charge

    - It can run for about 2.5 hours with 6~8 hour
    battery charge
    - Automatic charge convenience while heating
    during food distribution work
    - Safe design to prevent over-charging when charge
    is complete
    - If the power is plugged in after leaving work, it can
    run for a day the next day

  • Manual Switch

    - There is an electric/manual conversion lever on the
    inner side of the electric rear wheel for easy
    conversion and it can be used to respond quickly
    to situations caused by breakage or poor driving

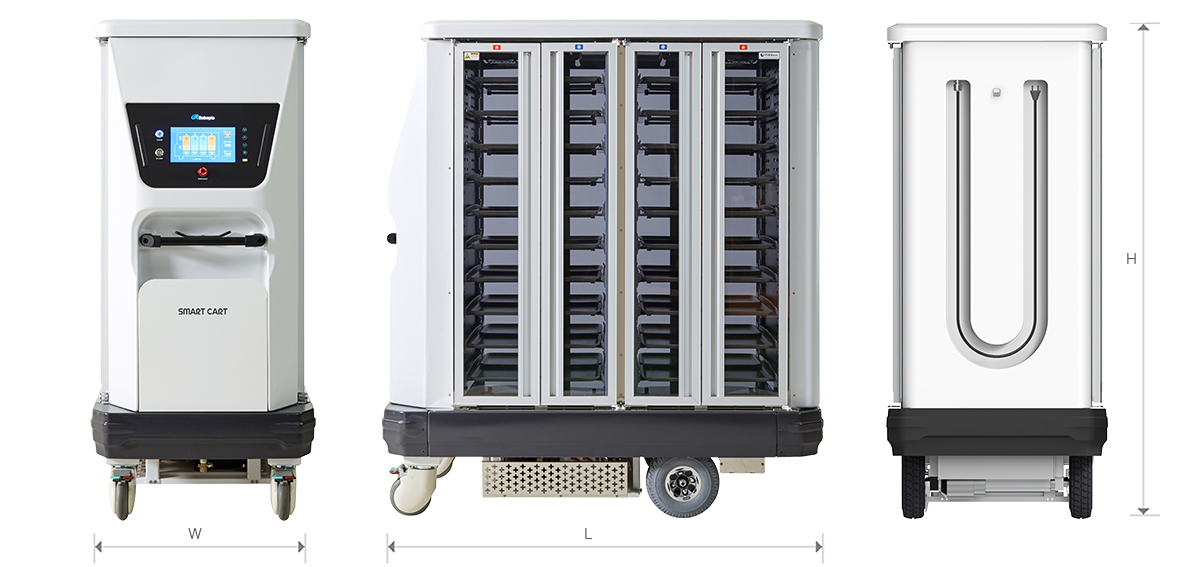

Specification

Model No. of Tray No. of Layer Battery
Run Time(h)		 Battery
Charging Time(h)		 Outer Dimension(mm) Weight
(Kg)		 Power
Consumption
(kW)		 Power
(PWR)
L W H
ELP-900HC 40 Row 4, Column 10 2.5 6~8 1560 770 1710 350 3.2 2P
AC220V
50/60Hz

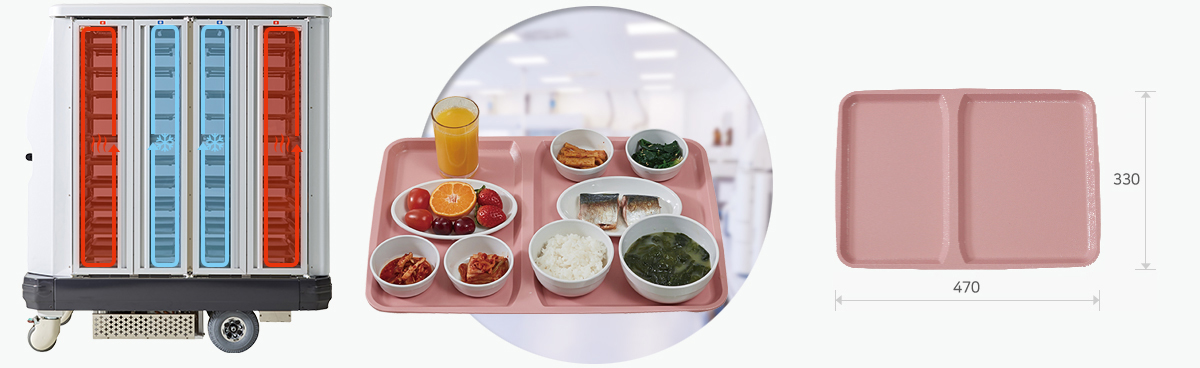

- Tray Size : 470 X 330mm ((Tray, tableware available)
- The speeds and battery life of electromotive food service carts may vary depending on the loads
