Main Features

Smart Design | Thermal Separation Temperature Control System | Double-Door Pass Type

Model : ELP-800MH

elp-800mh

SMART Food Service Cart for Warm Patient Meal Distribution and Hygiene Management

- Provides warm meals with closed racks that are hygienic with high heat-insulation

- Shortens waiting time by reaching a warm temperature of 50°C with about
30 minutes of preheating during meal preparation

- 6 casters minimize the rotation radius for convenient operation in narrow spaces

- Corner caster and foot brakes make it safe to operate and stop the food
service cart

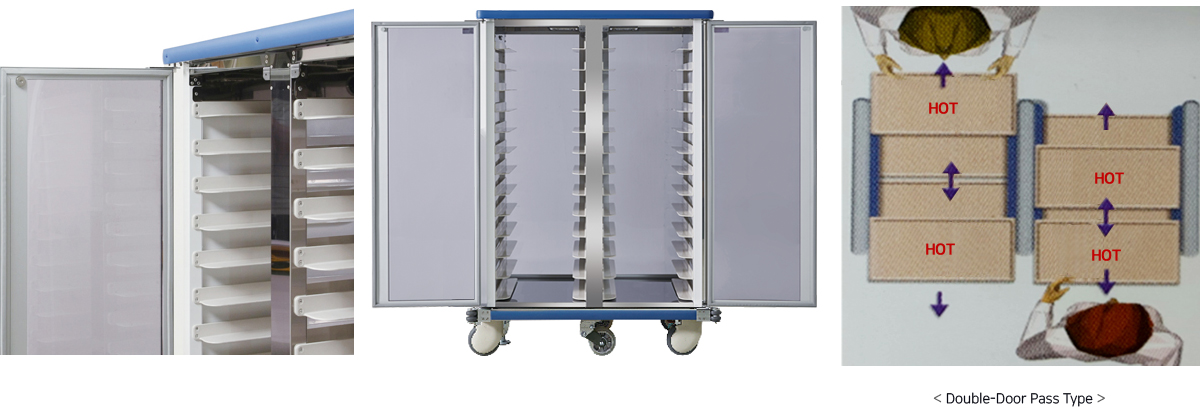

Insulated Pair Doors / Convenient Pass-Type Separator / Safe Racks

- Maintains uniform temperature with close-fit antibacterial packing door that considers the insulation
- Convenient double-door pass type separator for increased food-service efficiency even in small spaces
- Safe racks without sharpness during preparation with sturdy and high-density material injection racks

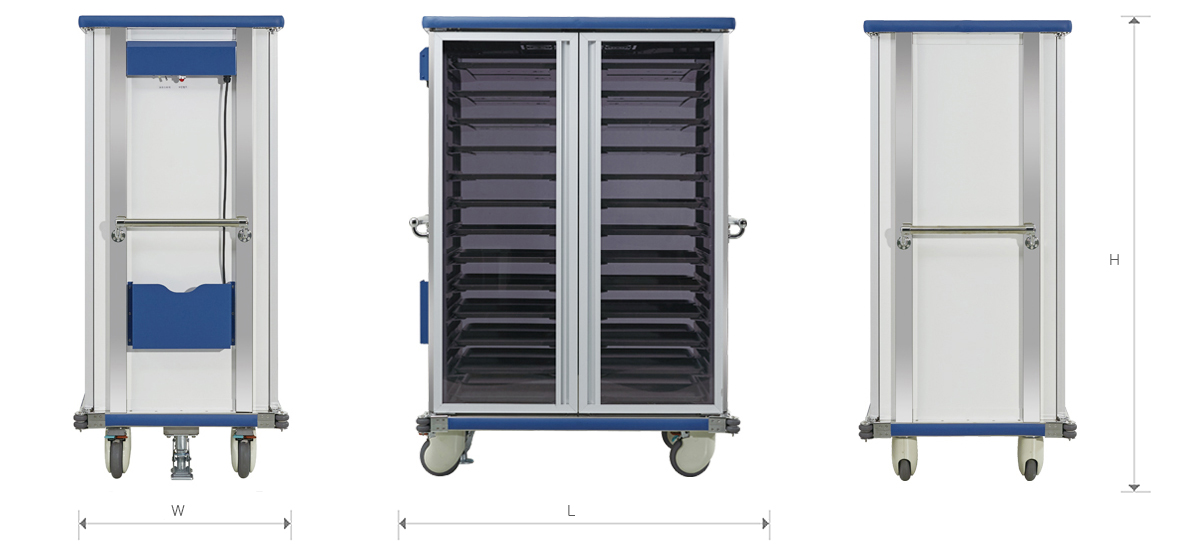

Specification

Model No. of Tray No. of Layer Outer Dimension(mm) Weight
(Kg)		 Power
Consumption
(kW)		 Power
(PWR)
L W H
ELP-800MH
(Manual)		 52 Row 4, Column 13 1240 770 1650 165 1.8 2P
AC220V
50/60HZ
44 Row 4, Column 11 1240 770 1450 150 1.8
26 Row 2, Column 13 780 770 1650 105 1.8
22 Row 2, Column 11 780 770 1450 90 1.8

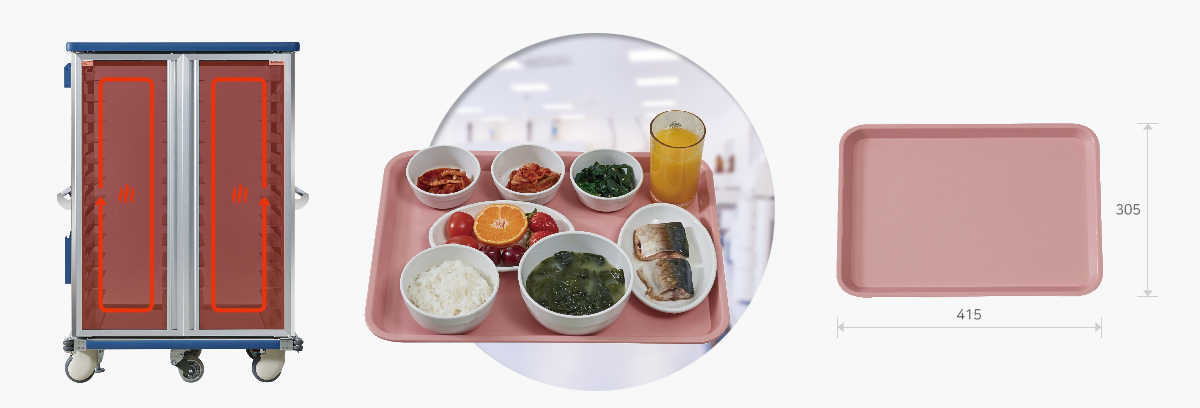

- Tray Size : Min 390x300mm ~ Max 415x305mm (Tray, tableware available)
