Main Features

Smart Design | Convenient Operation | Optimal for Hygiene Item Transport Including Linen

Model : ELP-600

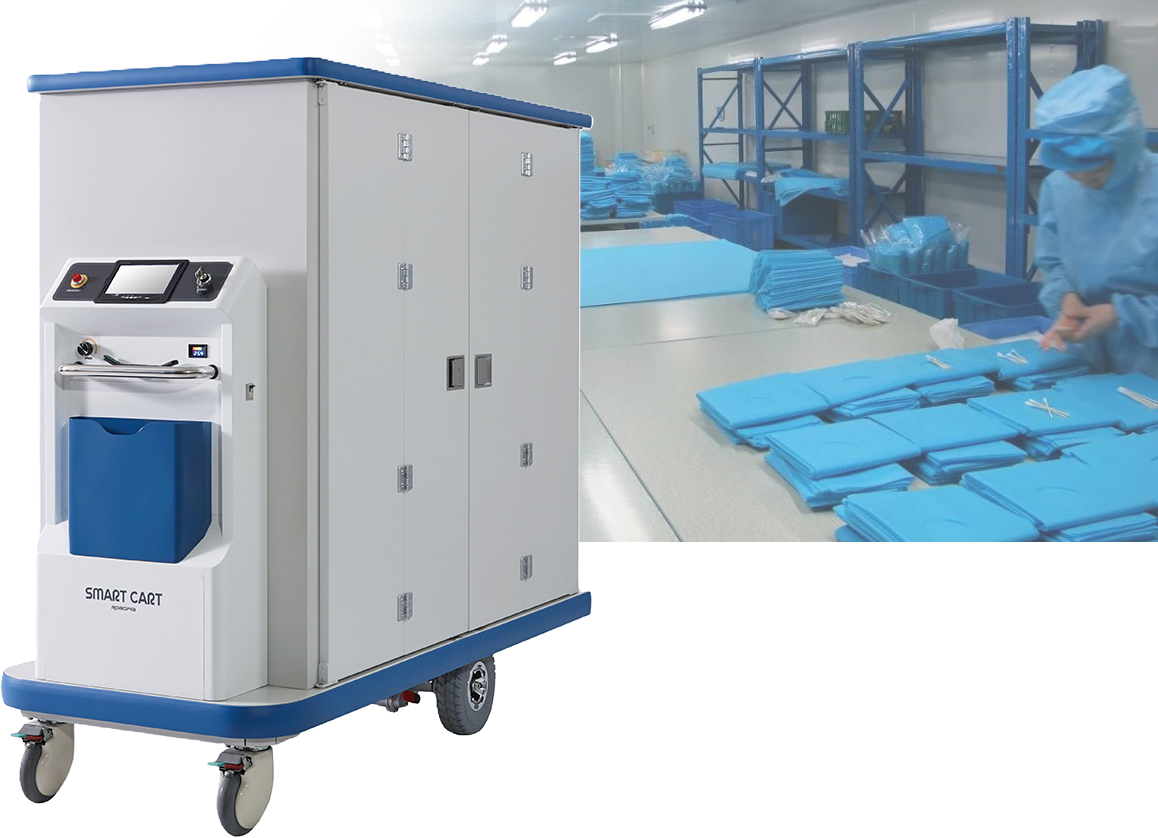

SMART moving cart for hygiene item transport including linen

- Optimal for high-quality hospital environment with smart exterior design
and excellent traction

- Optimal for hospital infection prevention, hygiene management, and medical
institution certification through closed rack transportation

- Increased efficiency and convenience in logistics transportation with easy
elevator usage and convenient operation

Closed Racks
- Optimal for infection prevention and hygiene management with closed rack transport inside the hospital
- Optimal product for creating a pleasant hospital environment and for medical institute certification preparation
- Convenient work with latch-type advanced one-touch stainless door handle
Forward / Reverse / Slope Drive
- Easy to move even when filled with sterilized items due to lever control
- Safe driving with the acceleration/deceleration functions SLOW START / STOP
- Stable movement when driving in reverse, same as driving forward
- Easy drive without difficulty on 20-degree ramps
Front Monitor / Emergency Stop Switch
- Rear camera attached to visually check blind spots when driving in reverse
- Safe driving possible through easy identification of forward/backward
direction display on 7-in LCD screen
- Safety preparation by the installation of an emergency stop switch that
can be pressed easily in emergencies
Reverse Alarm / Rear Detection Sensor / Bumper
- Safe use with surrounding boundary operation with the alarm function
when driving in reverse
- Rear detection sensor attached that recognizes obstacles when driving
in reverse and alerts you in advance with an alarm sound
Front / Rear Wheels
- It is easy to change directions with the front caster and its low noise
is optimal for the quiet hospital environment
- The rear electric wheels are foam-filled wheels that does not need
follow-up maintenance

Power Plug / Earth Leakage Breaker
- Integrated power plug for safety maintenance
and convenient repeated use
Battery Charge
- It can run for about 4 hours with 6~8 hour battery
charge
- Safe design to prevent over-charging when charge
is complete
- If the power is plugged in after leaving work, it can
run for a day the next day
Manual Switch
- There is an electric/manual conversion lever on
the inner side of the electric rear wheel for easy
conversion and it can be used to respond quickly
to situations caused by breakage or poor driving

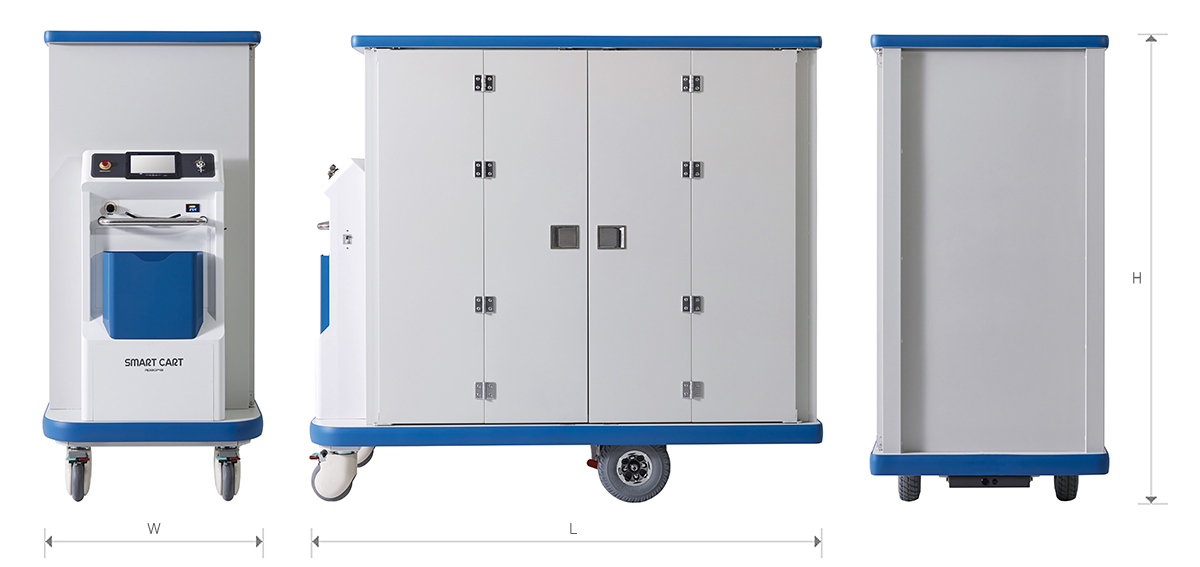

Specification

Model	Pushing/ Pulling Capacity(kg)	Battery Run Time(h)	Battery Charging Time(h)	Outer Dimension(mm)			Weight (Kg)	Power Consumption (kW)	Power (PWR)
Model	Pushing/ Pulling Capacity(kg)	Battery Run Time(h)	Battery Charging Time(h)	L	W	H	Weight (Kg)	Power Consumption (kW)	Power (PWR)
ELP-600	550	4	6~8	1800	785	1650	250	0.2	2P AC220V 50/60Hz

- The loading rack of the electromotive moving cart can be customized according to customer specifications
- The speeds and battery life of the electromotive moving cart may vary depending on the loads
